# Topology

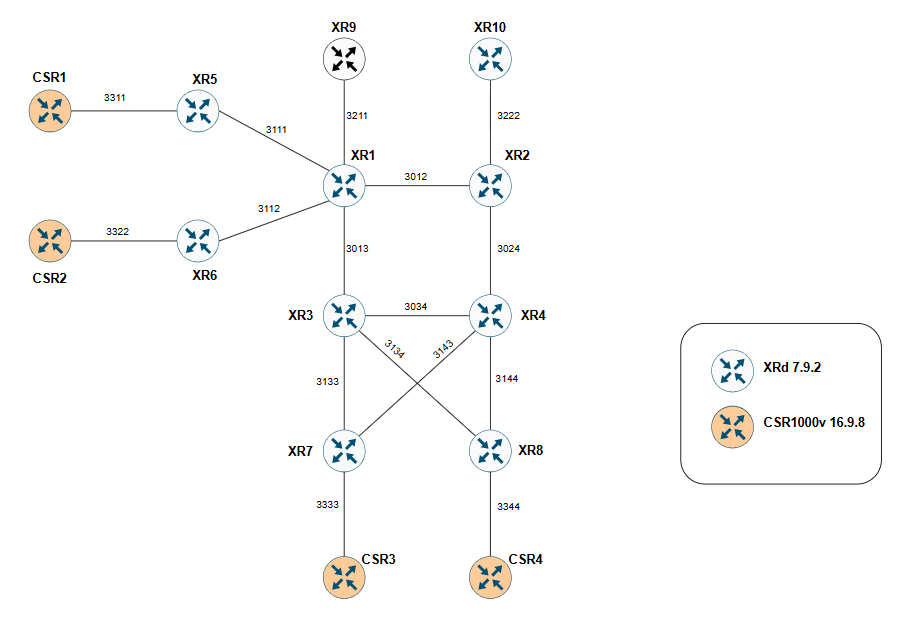

The following topology is used for all subsequent MVPN SR lab exercises, unless a topology is explicitly provided in the exercise.



The numbers on the links indicate the vlan in use. For example, the link between XR5 and CSR1 is Gi0/0/0/0.3311 and Gi2.3311.



<div align="left"><figure><img src="https://3072390383-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkUz2C3GqnZcWhoVL6jfk%2Fuploads%2FRnt2ZxfZSddXjaDTkg78%2Fimage.png?alt=media&#x26;token=b44b06f3-d8d9-41e2-8b44-f90e892d6efc" alt=""><figcaption></figcaption></figure></div>
